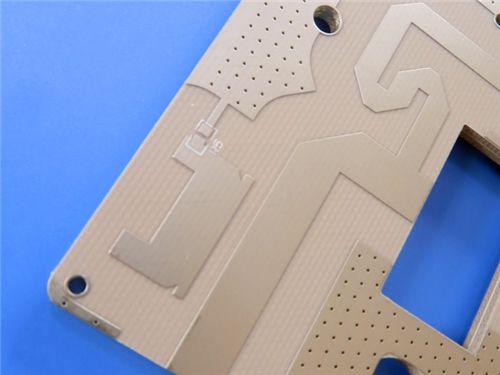

DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications

Grande immagine : DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications

Dettagli:

Luogo di origine:	Cina
Marca:	Bicheng
Certificazione:	UL, ISO9001, IATF16949
Numero di modello:	BIC-052.v1.0

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1pcs
Prezzo:	USD9.99-99.99
Imballaggi particolari:	Sacchi a vuoto+cartoni
Tempi di consegna:	8-9 giorni lavorativi
Termini di pagamento:	T/t
Capacità di alimentazione:	5000pcs al mese

Contatto

DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications

descrizione

Materiale di base:	Diclad 870	Conta dei strati:	2 strati
Spessore del PCB:	2,5 mm	Dimensione del PCB:	83 mm x 35 mm (1 pezzo), +/- 0,15 mm
Peso di rame:	1 oz (equivalente a 1,4 mil o 35 μm)	Finitura superficiale:	oro di immersione
Evidenziare:	2-Layer RF PCB Board , 35μm Copper Layers PCB , 2.5mm Thickness Printed Circuit Board

DiClad 870 PCB 2-Layer: 35μm Copper Layers 2.5mm Thickness

This 2-layer rigid PCB, built with Rogers DiClad 870 as its base material, is engineered to excel in high-frequency and low-loss electronic systems. With board dimensions of 83mm x 35mm (1 piece) and a tight tolerance of +/- 0.15mm, it provides a reliable and compact foundation for applications demanding consistent performance in diverse operating conditions.

PCB Details

Construction Detail	Specification
Base material	DiClad 870
Layer count	2-layer
Board dimensions	83mm x 35mm (1 piece), +/- 0.15mm
Minimum Trace/Space	5/9 mils
Minimum Hole Size	0.3mm
Finished board thickness	2.5mm
Finished Cu weight	Outer layers: 1 oz (1.4 mils)
Via plating thickness	20 μm
Surface finish	Immersion gold
Silkscreen	No
Solder Mask	No
Quality assurance (prior to shipment)	100% Electrical test

PCB Stack-up

The 2-layer rigid PCB features a precisely optimized stack-up to leverage DiClad 870's unique properties:

Layer/Material	Thickness Specification
Copper_layer_1	35 μm
DiClad 870 Core	2.362mm (93mil)
Copper_layer_2	35 μm

Artwork, Standards, and Availability

Artwork Format: You should supply the file. Gerber RS-274-X, a universal standard for PCB manufacturing data, ensuring seamless production and compatibility with industry workflows.

Quality Standard: Complies with IPC-Class-2, guaranteeing reliable performance for general electronic applications and meeting stringent industry requirements.

Availability: Offered worldwide, making it accessible for global projects across various industries, from telecommunications to aerospace.

Key Features of Rogers DiClad 870

DiClad 870 enhances the PCB's performance with a range of standout features:

Electrical Stability: Dielectric Constant (Dk) of 2.33 at 10 GHz and 1 MHz (50% RH), with a low dissipation factor of 0.0013 at 10 GHz and 0.0009 at 1 MHz--minimizing signal loss in high-frequency applications.
Thermal Coefficient of Dielectric Constant (TcDK): -161 ppm/°C over the range of -10~140°C (10 GHz), ensuring stable electrical performance across temperature fluctuations.
Mechanical and Environmental Resilience: Low moisture absorption (0.02%)--the lowest among PTFE-based composites--along with a copper peel strength of 14 lbs/in (10s @288°C), ensuring durability in harsh environments.
Safety and Reliability: Arc resistance >180 seconds and UL 94-V0 flammability rating, enhancing safety in critical applications.
Dimensional Stability: Coefficient of Thermal Expansion (CTE) of 17 ppm/°C (X-axis), 29 ppm/°C (Y-axis), and 217 ppm/°C (Z-axis), supporting consistent performance under thermal stress.

Benefits of DiClad 870

These features translate to critical advantages for the PCB:

Lowest Moisture Absorption: Ensures long-term reliability in humid or moisture-prone environments.
Stable Dk Over Frequency: Maintains consistent signal propagation across a wide range of operating frequencies, critical for multi-band systems.
Reduced Insertion Loss: Low Dk supports wider line widths, minimizing signal attenuation and enhancing overall system efficiency.

Typical Applications

Leveraging the performance of Rogers DiClad 870, this PCB is ideally suited for:

Radar Feed Networks
Commercial Phased Array Networks
Low Loss Base Station Antennas
Guidance Systems
Digital Radio Antennas
Filters, Couplers, and LNAs (Low-Noise Amplifiers)
