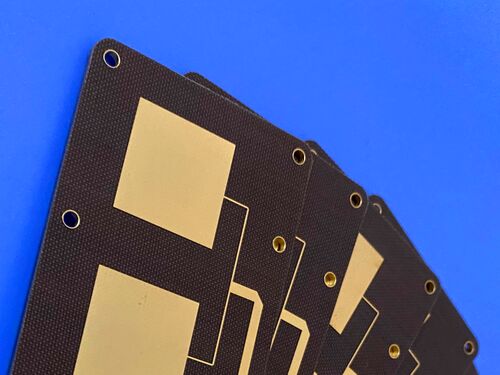

TLX-8 PCB Immersion Gold 2-layer 30mil Laminate RF Circuit Board

This is a high-performance 2-layer rigid printed circuit board (PCB) fabricated with TLX-8 high-frequency laminate, featuring a 30mil (0.762mm) board thickness, 1oz copper weight, immersion gold surface finish, and no solder mask or silkscreen (no oil, no text). This PCB leverages TLX-8’s superior electrical and mechanical properties, making it suitable for various high-frequency applications that demand stable performance and reliable structural integrity.

PCB Specification

PCB Stack-up

Introduction to TLX-8 Material

TLX-8 is a high-performance high-frequency laminate engineered for demanding RF, microwave, and high-speed digital applications. It exhibits excellent dielectric properties, low dissipation factor, and superior mechanical stability, making it ideal for applications that require minimal signal loss, reliable thermal performance, and consistent dimensional stability. The material is compatible with standard PCB fabrication processes, ensuring ease of manufacturing while maintaining high performance standards.

TLX-8 Material Properties

Typical Applications of TLX-8 PCB

-RF and microwave communication equipment

-High-speed digital circuits

-Test and measurement instruments

-Aerospace and defense electronic systems

-Satellite communication components

-Radar and navigation systems

-Wireless communication devices

Artwork, Quality Standard and Availability

Artwork for this PCB is provided in the Gerber RS-274-X format, the industry standard for PCB manufacturing, ensuring seamless compatibility with mainstream production equipment and design software. The PCB complies with recognized industry standards, guaranteeing consistent electrical performance, reliable manufacturing quality, and adherence to requirements for high-frequency applications. Furthermore, this PCB is available worldwide, catering to the needs of international customers and high-frequency circuit projects globally.

Conclusion

Due to its excellent dielectric properties, minimal signal loss , superior thermal stability and mechanical reliability. This TLX-8 PCB has become the optimal choice for professionals and project teams engaged in RF communication, microwave systems, high-speed digital circuits, aerospace and defense electronics, satellite communication, radar, navigation, and wireless communication sectors that demand high-performance and stable high-frequency circuit solutions.
